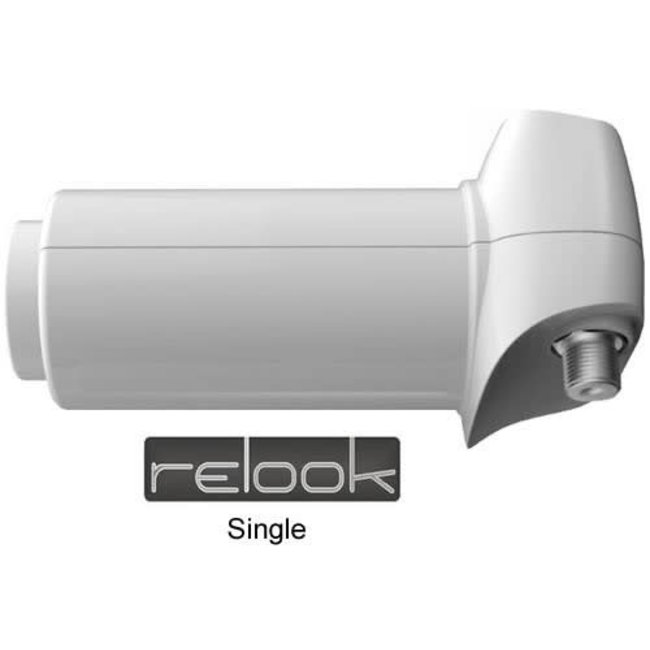

RELOOK RELOOK SINGLE

* Single LNB
* HQ-Sat-Empfangskonverter
* Mod. easyConnect RE-S1EC
* 40mm Slim-Feed
* Feed-Länge: 75mm
* UDFT - unique dialog feed technology
* ULND - ultra low noise device
* Rauschmaß: 0.1dB (typ.)
* geringe Stromaufnahme
* hohe Frequenzstabilität
* HDTV / DVB-S2 / 3D kompatibel
* Wetterschutzgehäuse
* Farbe: weiß
* minimale Bitfehlerrate
* sehr gutes Träger-Rauschverhältnis
* hohe X-Polarisation-Entkopplung
* ILS (immune to LTE signal)
* OGL - optimized gain level
* Conversion Gain: 60-64 dB
* Gain Flatness 26 MHz bandwidth: +/- 0.5 dB
* Cross Pol. Isolation: 25dB (typ.)
* Image Rejection: 40 dB (min)
* Low Band Input Frequency Range: 10.7~11.7 GHz
* Low Band Output Frequency Range: 950~1950 MHz
* LO Frequency: 9.75 GHz
* High Band Input Frequency Range: 11.7~12.75 GHz
* High Band Output Frequency Range:1100~2150 MHz
* LO Frequency: 10.6 GHz
* LO Frequency Stability: +/- 1 MHz (max.) @ room temp.
* Band Switching: Low: 0 KHz / High: 22 KHz (+/- 4 KHz)
* Polarity Switching: vert. 11-14 V DC / hor. 16-20 V DC
* Output Spurious: <-60dBm
* Current Consumption: 100 mA (typ.)
* Operating Temp. Range: -40°C ~ +65°C
* Output Impedance: 75 Ω
* Output Connector Type: F-Female
